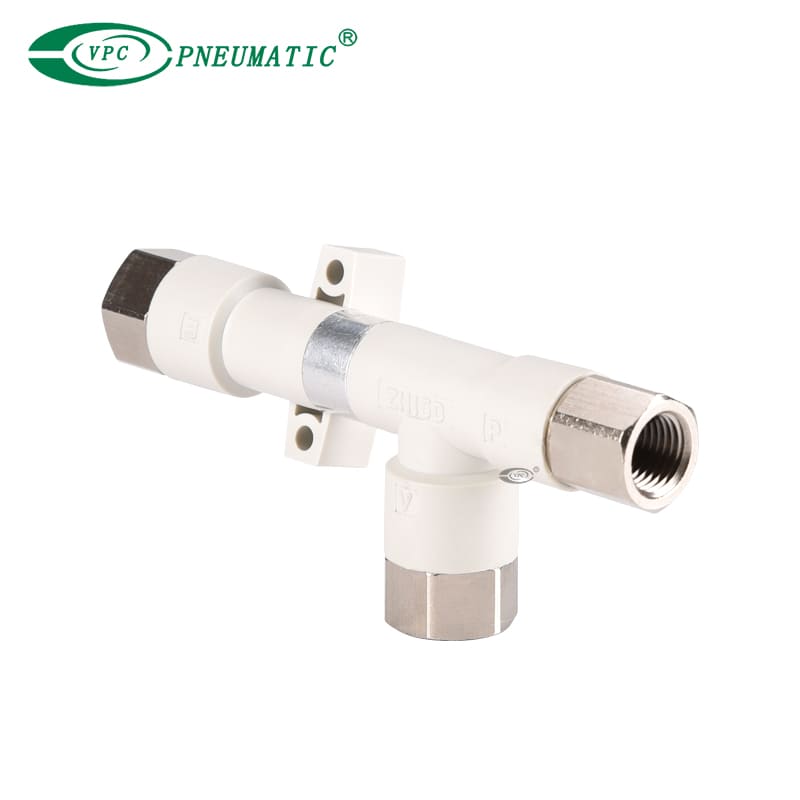

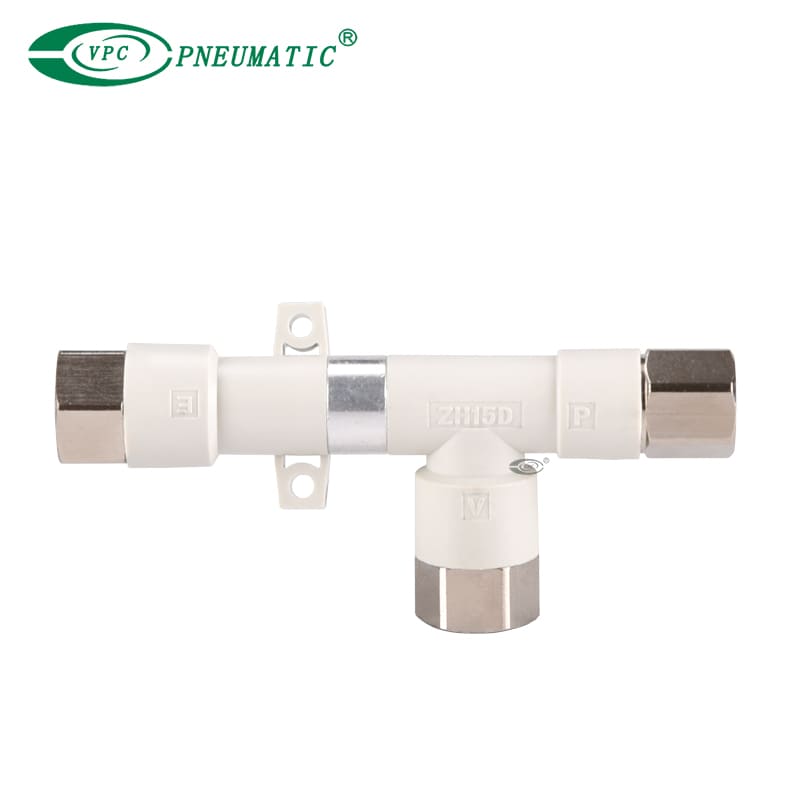

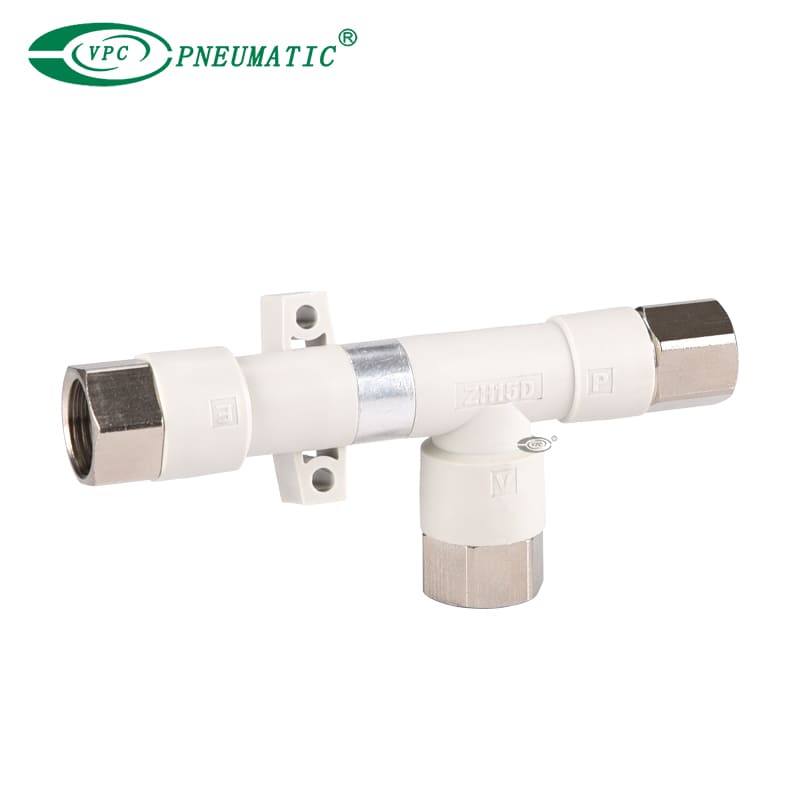

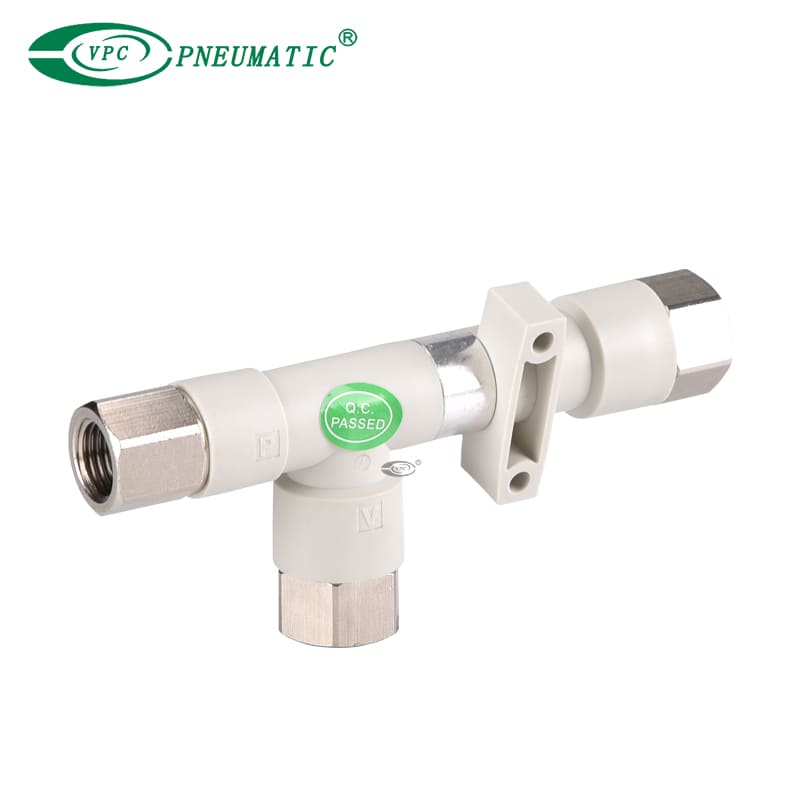

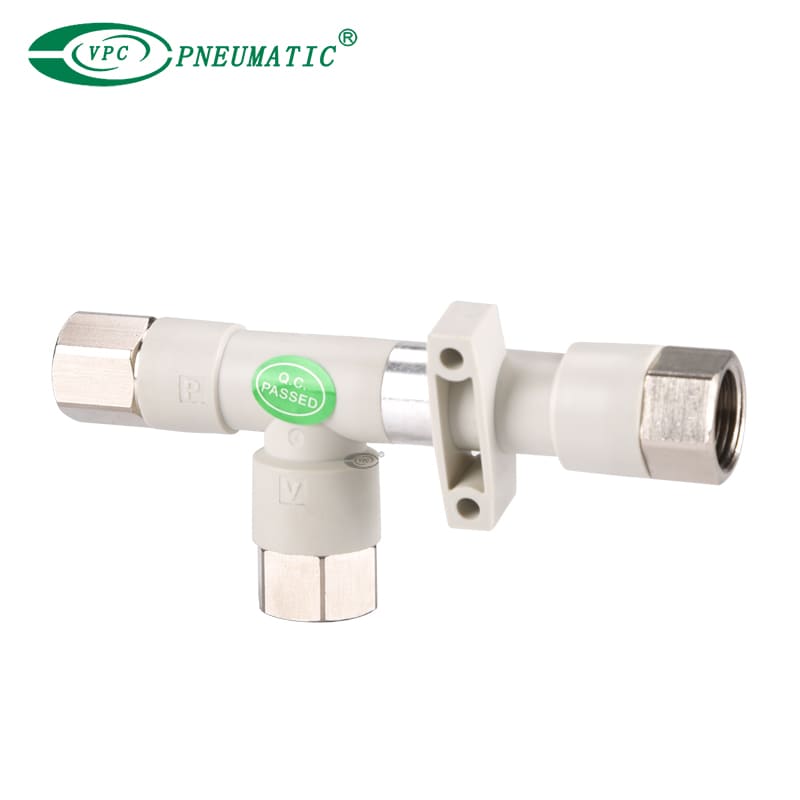

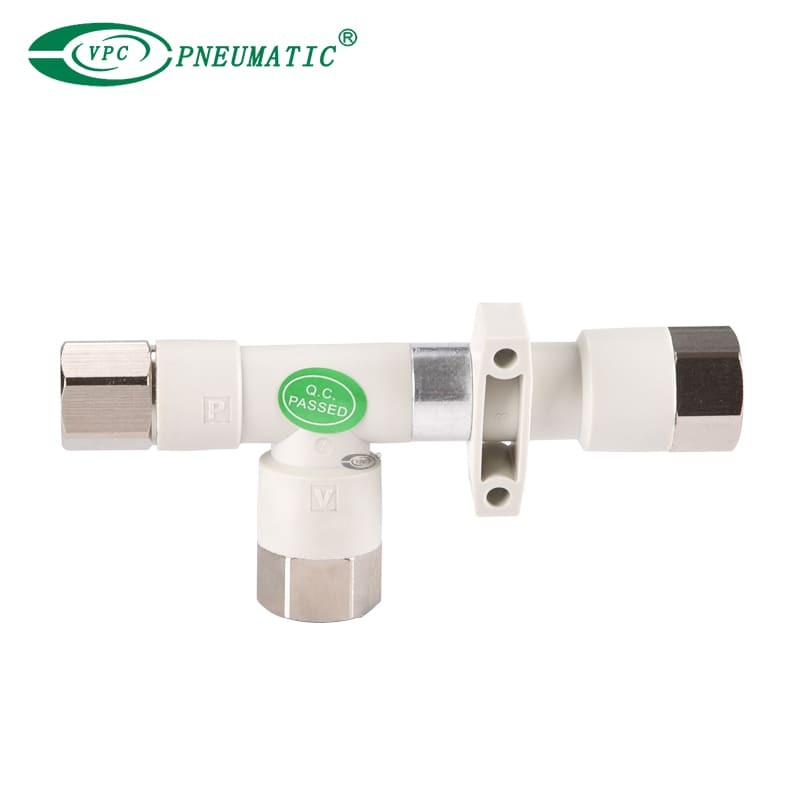

Vakuumgenerator mit ZH -Serie Körperportierter Typ

Anteil an:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Die Vakuumgenerator-Reihe ZH bietet einen kompakten und leichten Generator mit Standardfluss und großen Durchflussfunktionen. Es sind zwei Typen verfügbar: Boxtyp mit einem Schalldämpfer Auspuff und Körperporporte mit individuellem Auspuff. Außerdem sind diese Generatoren oft kleiner und leichter als die sperrigen Vakuumleitungen, die in zentralen Vakuumsystemen verwendet werden. Erhältlich in verschiedenen Düsendurchmessern und mehreren Portgrößen.
  • Zh15d

  • VPC Pneumatic

Düsendurchmesser :
Vakuumdruck:
Verfügbarkeitsstatus:

Produktbeschreibung

■  Produktfunktion

1. Sieben Düsendurchmesser (mm): 0,5, 0,7, 1,0, 1,3, 1,5, 1,8. 2.0.

2. Vier Montagetypen direkt, Standardklasse, L-Spur und DIN-Schiene.

3.. Schalldämpfer und Standardhalterung erhältlich.




 Symbol

Zh07d

Vakuum -Ejektoren

Produktspezifikationen

■  Spezifikation

ModellDüsendurchmesser (mm)KörpertypArbeitsmediumArbeitstemperaturMax. ArbeitsdruckStandardversorgungsdruckVersorgungsdruck
ZH05B □0.5Boxtyp (eingebauter Schalldämpfer)Luft5 bis 50 ℃0,6 MPa0,45 MPa0,45 MPa
ZH07B □0.7
Zh10b □1.0
ZH13B □1.3
ZH05D □0.5Karosserie -Port -Typ
(ohne Schalldämpfer)
ZH07D □0.7
ZH10D □1.0
ZH13D □1.3
Zh15d □1.5Karosserie -Port -Typ
(ohne Schalldämpfer)
Zh18d □1.8
ZH20D □   2.0
ModellMax. Vakuumdruck (KPA)*2Max. Saugflussrate
[l/min (ANR)]
Luftverbrauch
[l/min (ANR)]
Anschluss
(One-Touch/Schraubinhaber)
Typ sTyp lTyp sTyp lGeben Sie S/Typ l einSupVacExh
ZH05B □-88-485813Φ6, RC1/8
G1/8
Φ6, RC1/8
G1/8
ZH07B □122025
Zh10b □243461
ZH13B □407092Φ8, RC1/8
G1/8
Φ10, RC1/4
G1/4
ZH05D □-88-485813Φ6, RC1/8
G1/8
Φ6, RC1/8
G1/8
Φ6, RC1/8
G1/8
ZH07D □122025
ZH10D □243461Φ6, RC1/8
G1/8
Φ6, RC1/8
G1/8
Φ8, RC1/8
G1/8
ZH13D □407092Φ8, RC1/8
G1/8
Φ10, RC1/4
G1/4
Φ10, RC1/4
G1/4
Zh15d □-88-535575116Φ10, RC1/4
G1/4
Φ12, RC3/8
G3/8
Φ12, RC3/8
G3/8
Zh18d □65110155Φ12, RC3/8
G3/8
Φ12, RC3/8
G3/8
Φ12, RC3/8
G3/8
ZH20D □85135210Φ12, RC3/8
G3/8
Φ16, RC1/2
G1/2
Φ16, RC1/2
G1/2


Hauptabmessungen

ZH -Vakuum -Ejektorgenerator Designator

Modell A B C D Φe F Φg H I Φj K L M Φn O P
ZH05DL-06-06-06 58.5 14.2 34 22 6 16.8 3.2 16.8 16.8 6 24 21 7.8 6 17 24
ZH05DS-06-06-06
ZH07DS-06-06-06 61 22
ZH07DL-06-06-06
ZH10DS-06-06-08 66 17.2 37 23 6 16.8 4.2 16.8 18.7 6 26 24.5 9.6 8 20 28
ZH10DL-06-06-08 70
ZH13DL-08-10-10 74.5 20 42.5 27.5 8 18.7 4.2 21.6 21.6 10 28 27 10.7 10 22 30
ZH13DS-08-10-10 79.5
ZH15DL-10-12-12 93.5 22.5 47 29.5 10 21.6 4.2 21.8 21.6 12 31.5 33 12 12 27 35
ZH15DS-10-12-12

Zh 13d

Modell A B C D Φe F Φg H I J K L M Φn O P
ZH05DL-06-01-06 58.5 14.2 41.5 29.5 6 16.8 3.2 12 16.8 RC1/8 24 21 7.8 6 17 24
ZH05DS-06-01-06
ZH07DS-06-01-06 61 22
ZH07DL-06-01-06
ZH10DS-06-01-08 66 17.2 44.5 30.5 6 16.8 4.2 12 18.7 RC1/8 26 24.5 9.6 8 20 28
ZH10DL-06-01-08 70
ZH13DL-08-02-10 74.5 20 53.5 38.5 8 18.7 4.2 17 21.6 RC1/4 28 27 10.7 10 22 30
ZH13DS-08-02-10 79.5
ZH15DL-10-03-12 93.3 22.5 58.5 41 10 21.6 4.2 19 21.6 RC3/8 31.5 33 12 12 27 35
ZH15DS-10-03-12
ZH05DS-06-F01-06 58.5 14.2 41.5 29.5 6 16.8 3.2 12 16.8 G1/8 24 21 7.8 6 17 24
ZH05DL-06-F01-06
ZH07DS-06-F01-06 61 22
ZH07DL-06-F01-06
ZH10DL-06-F01-08 66 17.2 44.5 30.5 6 16.8 4.2 12 18.7 G1/8 26 24.5 9.6 8 20 28
ZH10DS-06-F01-08 70
ZH13DS-08-F02-10 74.5 20 54 39 8 18.7 4.2 17 21.6 G1/4 28 27 10.7 10 22 30
ZH13DL-08-F02-10 79.5
ZH15DL-10-F03-12 93.3 22.5 58.5 41 10 21.6 4.2 19 21.6 G3/8 31.5 32.8 12 12 27 35
ZH15DS-10-F03-12

SMC Vakuum -Ejektor


Modell A B C D E F Φg H I J K L M N O P
ZH05DL-01-01-01 73.5 14.2 41.5 29.5 RC1/8 12 3.2 12 12 RC1/8 31.5 28.5 7.8 RC1/8 17 24
ZH05DS-01-01-01
ZH07DS-01-01-01 76 29.5
ZH07DL-01-01-01
ZH10DS-01-01-01 81.8 17.2 44.5 30.5 RC1/8 12 4.2 12 14 RC1/8 33.5 32.8 9.6 RC1/8 20 28
ZH10DL-01-01-01 85.8
ZH13DL-01-02-02 93.8 20 53.5 38.5 RC1/8 14 4.2 17 17 RC1/4 36.3 38 10.7 RC1/4 22 30
ZH13DS-01-02-02 98.8
ZH15DL-02-03-03 116.5 22.5 58.5 41 RC1/4 17 4.2 19 19 RC3/8 43 44.5 12 RC3/8 27 35
ZH15DS-02-03-03
ZH05DS-F01-F01-F01 73.5 14.2 41.5 29.5 G1/8 12 3.2 12 12 G1/8 31.5 28.5 7.8 G1/8 17 24
ZH05DL-F01-F01-F01
ZH07DS-F01-F01-F01 76 29.5
ZH07DL-F01-F01-F01
ZH10DL-F01-F01-F01 81.8 17.2 44.5 30.5 G1/8 12 4.2 12 14 G1/8 33.5 32.8 9.6 G1/8 20 28
ZH10DS-F01-F01-F01 85.8
ZH13DS-F01-F02-F02 94.3 20 54 39 G1/8 14 4.2 17 17 G1/4 36.3 38.5 10.7 G1/4 22 30
ZH13DL-F01-F02-F02 99.3
ZH15DL-F02-F03-F03 116.5 22.5 58.5 41 G1/4 17 4.2 19 19 G3/8 43 44.5 12 G3/8 27 35
ZH15DS-F02-F03-F03

Vakuum -Ejektor SMC

Modell A B C D Φe F Φg H I Φj K L M Φn O
ZH18DL-12-12-12 114 21 41 30.5 Φ12 21.8 Φ3.5 21.8 21.8 Φ12 35.5 50 17 Φ12 10
ZH18DS-12-12-12
ZH20DS-12-16-16 124.6 26.8 46 35.5 Φ12 21.8 Φ3.5 24.2 24.2 Φ16 38.5 54.3 22 Φ16 12
ZH20DL-12-16-16

Inline -Vakuum -Ejektor

Modell A B C D Φe F Φg H I J K L M Φn O
ZH18DL-12-03-12 114 21 52.5 42 Φ12 21.8 Φ3.5 19 21.8 RC3/8 35.5 50 17 Φ12 10
ZH18DS-12-03-12
ZH20DS-12-04-16 124.6 26.8 61 50.5 Φ12 21.8 Φ3.5 24 24.2 RC1/2 38.5 54.3 22 Φ16 12
ZH20DL-12-04-16
ZH18DS-12-F03-12 114 21 52.5 42 Φ12 21.8 Φ3.5 19 21.8 G3/8 35.5 50 17 Φ12 10
ZH18DL-12-F03-12
ZH20DS-12-F04-16 124.6 26.8 61 50.5 Φ12 21.8 Φ3.5 24 24.2 RC1/2 38.5 54.3 22 Φ16 12
ZH20DL-12-F04-16

pneumatisches Vakuum -Ejekto

Modell A B C D E F Φg H I J K L M N O
ZH18DL-03-03-03 137 21 52.5 42 RC3/8 19 Φ3.5 19 19 RC3/8 47 61.5 17 RC3/8 10
ZH18DS-03-03-03
ZH20DL-03-04-04 151.1 26.8 61 50.5 RC3/8 19 Φ3.5 24 24 RC1/2 50 69.3 22 RC1/2 12
ZH20DS-03-04-04
ZH18DS-F03-F03-F03 137 21 52.5 42 G3/8 19 Φ3.5 19 19 G3/8 47 61.5 17 G3/8 10
ZH18DL-F03-F03-F03
ZH20DS-F03-F04-F04 151.1 26.8 61 50.5 G3/8 19 Φ3.5 24 24 G1/2 50 69.3 22 G1/2 12
ZH20DL-F03-F04-F04
