Produktbeschreibung
■Rohrgröße
| Röhre (Metrik) | Röhre (Zoll) | ||||||||||||
| Code | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 5/32 | 3/16 | 1/14 | 5/16 | 3/8 | 1/2 |
| Röhre draußen | Verlassen | Verlassen | Verlassen | Verlassen | Ф12 | Ф14 | Ф16 | Verlassen/32 | Verlassen/16 | Ф1/14 | Verlassen/16 | Verlassen/8 | Ф1/2 |
■Faden
| Faden (Metrisch) | ||||||||
| Code | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
| Faden | M5 × 0,8 | M6 × 1,0 | M8 × 1,0 | M10 × 1,0 | M12 × 1,25 | M14 × 1,5 | M16 × 1,5 | M20 × 1,5 |
| 55 ° Faden (R) | |||||
| Code | 01 | 02 | 03 | 04 | 06 |
| Faden | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 |
| 55 ° Faden (g) | |||||
| Code | G01 | G02 | G03 | G04 | G06 |
| Faden | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 |
| Thread (UNF) | UNS Faden 60 ° | |||||
| Code | U10 | 01n | 02n | 03n | 04n | 06n |
| Faden | 10-32Unf | Npt1/8 | Npt1/4 | Npt3/8 | Npt1/2 | Npt3/4 |
Produktspezifikationen

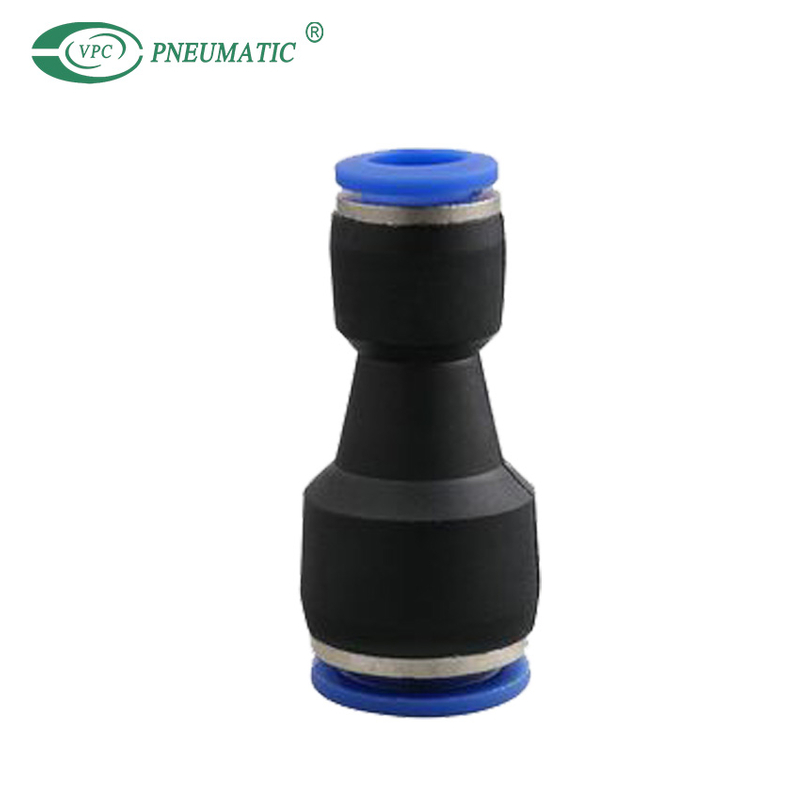

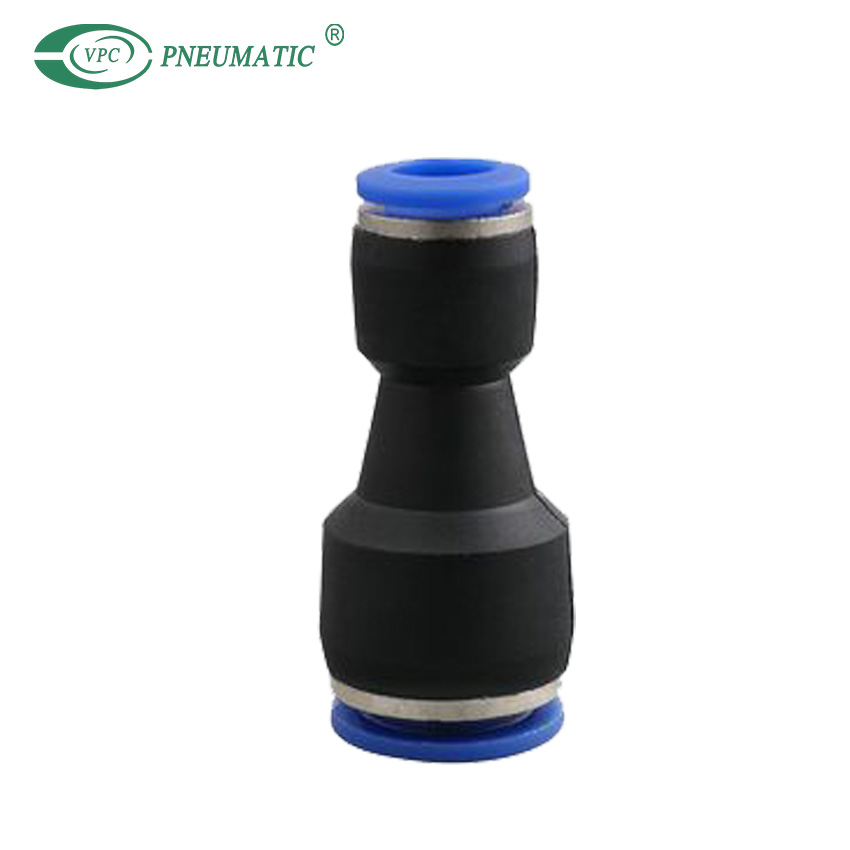

| Modell (verlassen) | |
| Röhre (Metrik) | Röhre (Zoll) |
| VPG06-04 | VPG3/16-5/32 |
| VPG08-04 | VPG1/4-5/32 |
| VPG08-06 | VPG1/4-3/16 |
| VPG10-06 | VPG5/16-1/4 |
| VPG10-08 | VPG3/8-5/16 |
VPG12-10 | VPG1/2-3/8 |
| VPG16-12 | |
| VPG16-14 | |
