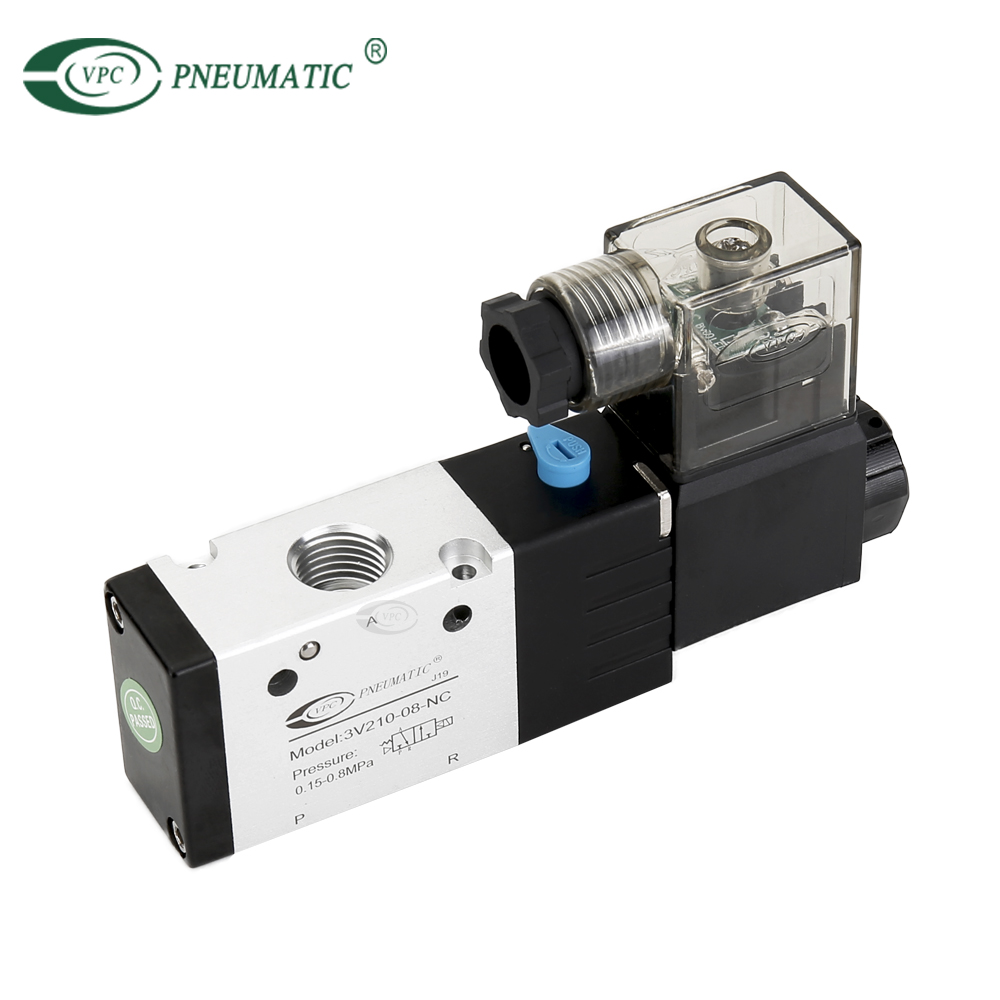

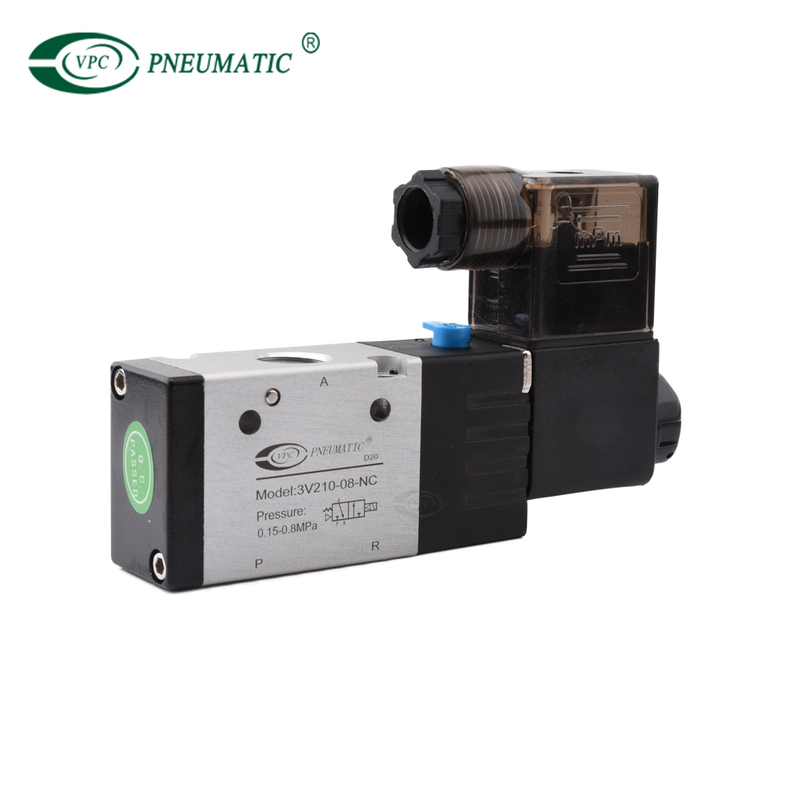

3v110
VPC Pneumatic
8412909000
Arbeitsmedium: | |
---|---|
Schauspieltyp: | |
Arbeitstemperatur: | |
Arbeitsdruck: | |
Qualitätsgarantie: | |
Verfügbarkeitsstatus: | |
Produktbeschreibung
Produktspezifikationen
Modell | 3V110-M5 | 3V110-06 | 3V210-06 | 3V210-08 | 3V310-08 | 3V310-10 | 3V410-15 |
Arbeiten Mittel | Saubere Luft | ||||||
Schauspielerischer Typ | Interner Leitfaden | ||||||
Gelenkgröße | Import=M5 Export=M5 | Import=1/8 Export=1/8 | Import=1/8 Export=1/8 | Import=1/4 Export=1/4 | Import=1/4 Export=1/4 | Import=3/8 Export=3/8 | Import=1/2 Export=1/2 |
Querschnittsfläche | 5,5 mm² (CV=0,31) | 12mm² (CV=0,67) | 14mm² (CV=0,78) | 16mm² (CV=0,89) | 25mm² (CV=1,39) | 30mm² (CV=1,67) | 50mm² (CV=2,79) |
Arbeitsdruck | 0,15 bis 0,9 MPa | ||||||
Max.Arbeitsdruck | 1,2 MPa | ||||||
Arbeitstemperatur | -5 bis 60℃ | ||||||
Spannungstoleranz | -15 % bis 10 % | ||||||
Hitzebeständige Sorte | B | ||||||
Schutzklasse | IP65 (DIN40050) | ||||||
Spulentyp | Din-Typ, fliegende Kabel | ||||||
Max. Wirkfrequenz | 5 mal/s | 4 mal/s |
Hauptabmessungen
