| Anwendbares Rohr: | |
|---|---|
| Körperfarbe: | |

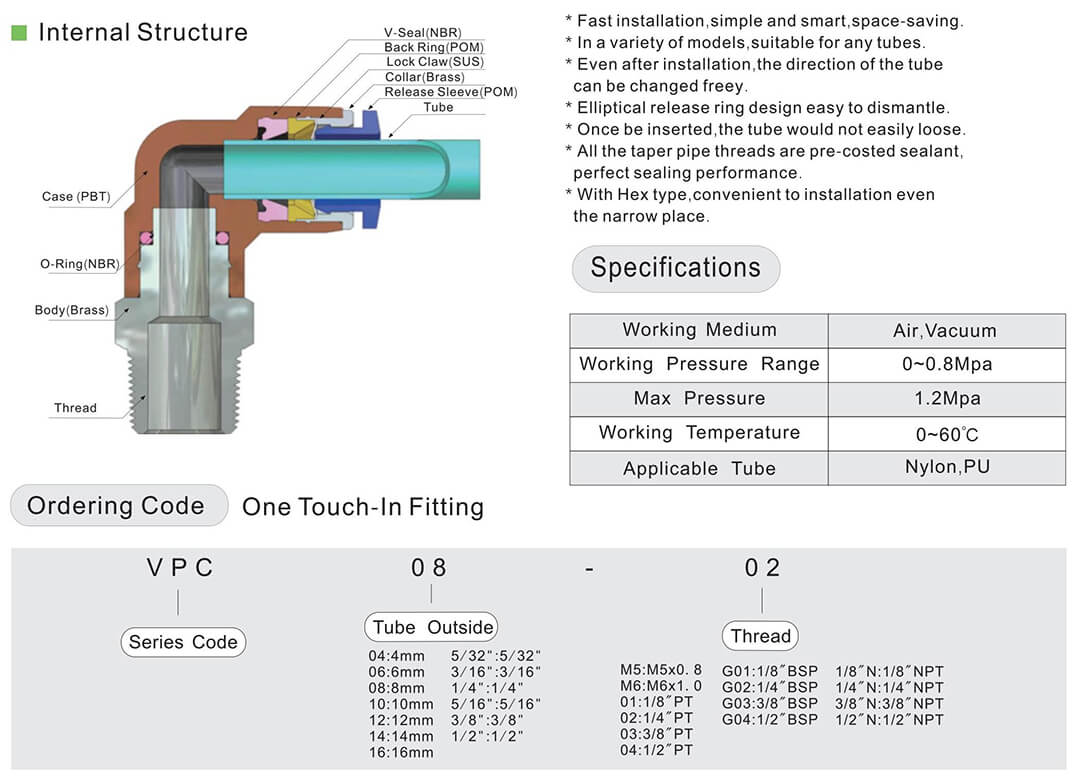

Produktbeschreibung
■Rohrgröße
| Rohr (metrisch) | Rohr (Zoll) | ||||||||||||
| Code | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 5/32 | 3/16 | 1/14 | 5/16 | 3/8 | 1/2 |
| Rohr draußen | Ф4 | Ф6 | Ф8 | Ф10 | Ф12 | Ф14 | Ф16 | Ф5/32 | Ф3/16 | Ф1/14 | Ф5/16 | Ф3/8 | Ф1/2 |
■Faden
| Faden (Metrisch) | ||||||||
| Code | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
| Faden | M5×0,8 | M6×1,0 | M8×1,0 | M10×1,0 | M12×1,25 | M14×1,5 | M16×1,5 | M20×1,5 |
| 55°-Gewinde (R) | |||||
| Code | 01 | 02 | 03 | 04 | 06 |
| Faden | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 |
| 55°-Gewinde (G) | |||||
| Code | G01 | G02 | G03 | G04 | G06 |
| Faden | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 |
| Thread(UNF) | UNS Gewinde 60° | |||||
| Code | U10 | 01N | 02N | 03N | 04N | 06N |
| Faden | 10-32UNF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/4 |
Produktspezifikationen
| Modell (ФD - ФD2) | ||
| Rohr (metrisch) – Rohr (metrisch) | Rohr (metrisch) – Rohr (Zoll) | Rohr (Zoll)-Rohr (Zoll) |
| VPGJ06-04 | VPGJ08-1/4 | VPGJ1/4-5/32 |
| VPGJ08-04 | VPGJ10-1/4 | VPGJ5/16-5/32 |
| VPGJ08-06 | VPGJ10-5/16 | VPGJ5/16-1/4 |
| VPGJ10-06 | VPGJ12-1/4 | VPGJ3/8-1/4 |
| VPGJ10-08 | VPGJ12-5/16 | VPGJ3/8-5/16 |
| VPGJ12-06 | - | VPGJ1/2-1/4 |
| VPGJ12-08 | - | VPGJ1/2-5/16 |
| VPGJ12-10 | - | VPGJ1/2-3/8 |
