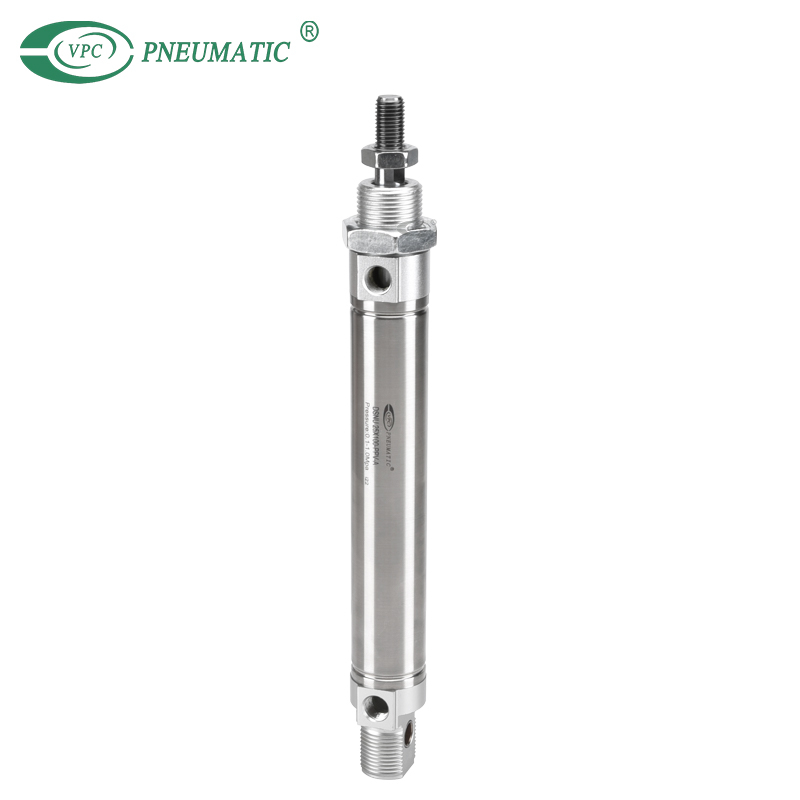

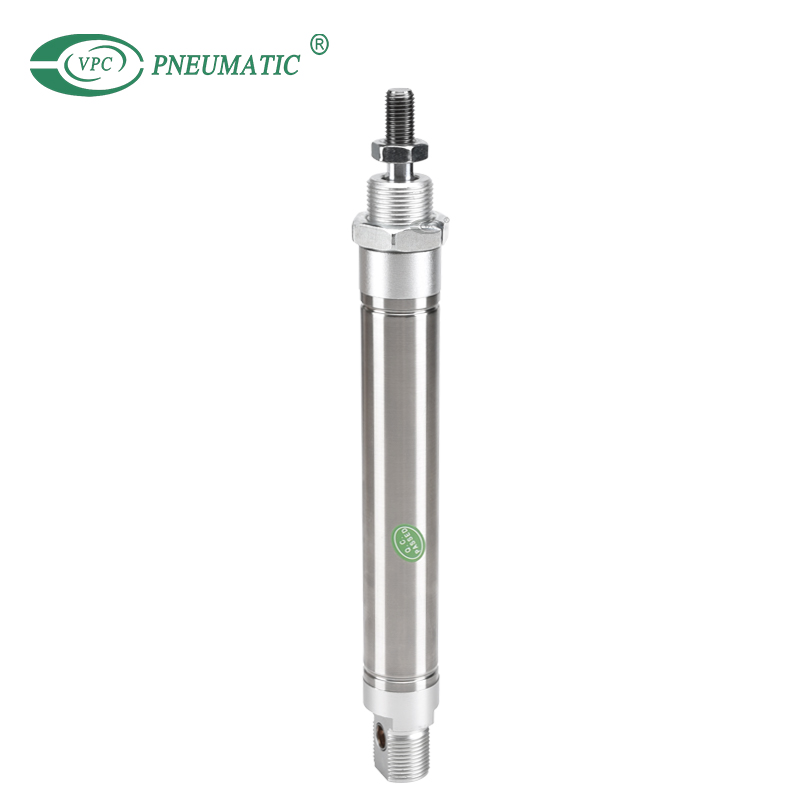

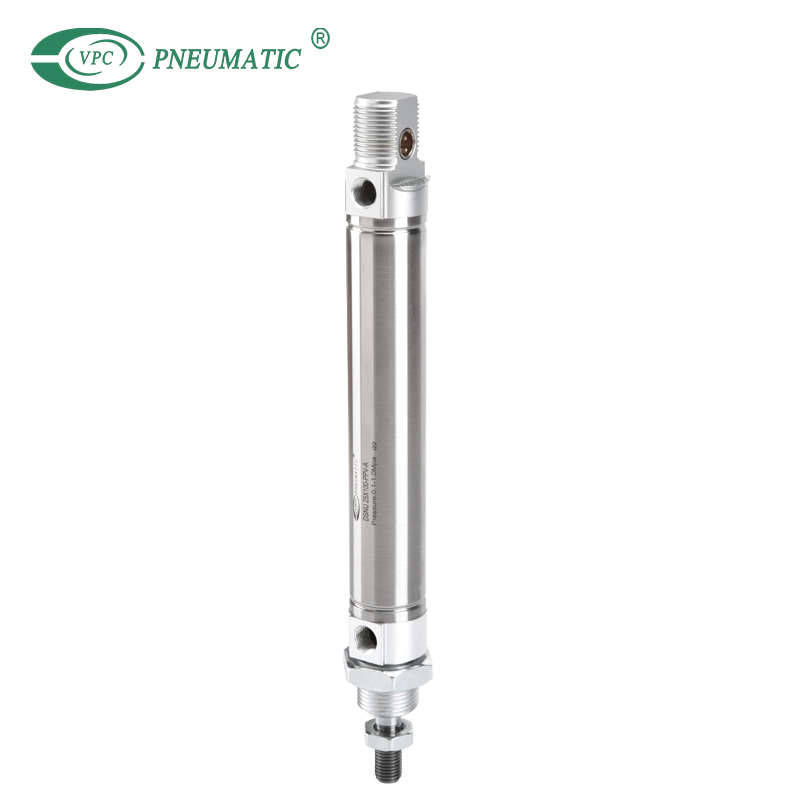

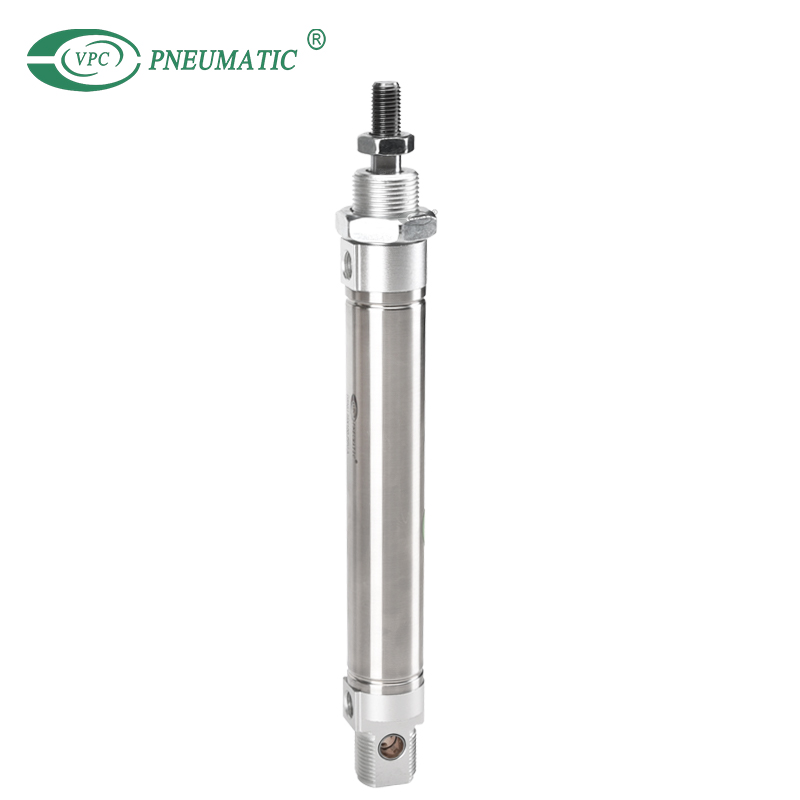

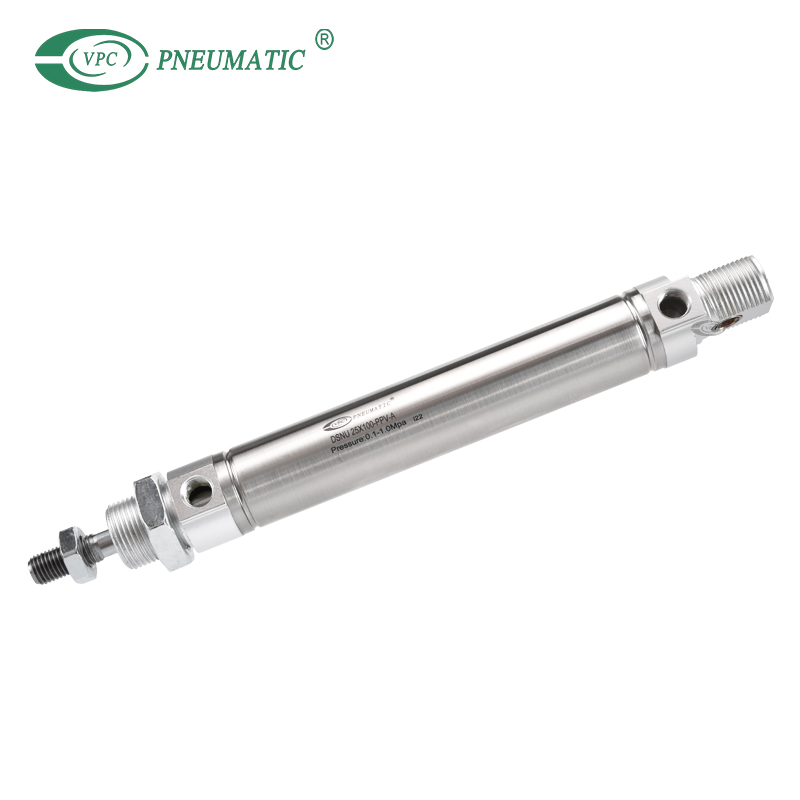

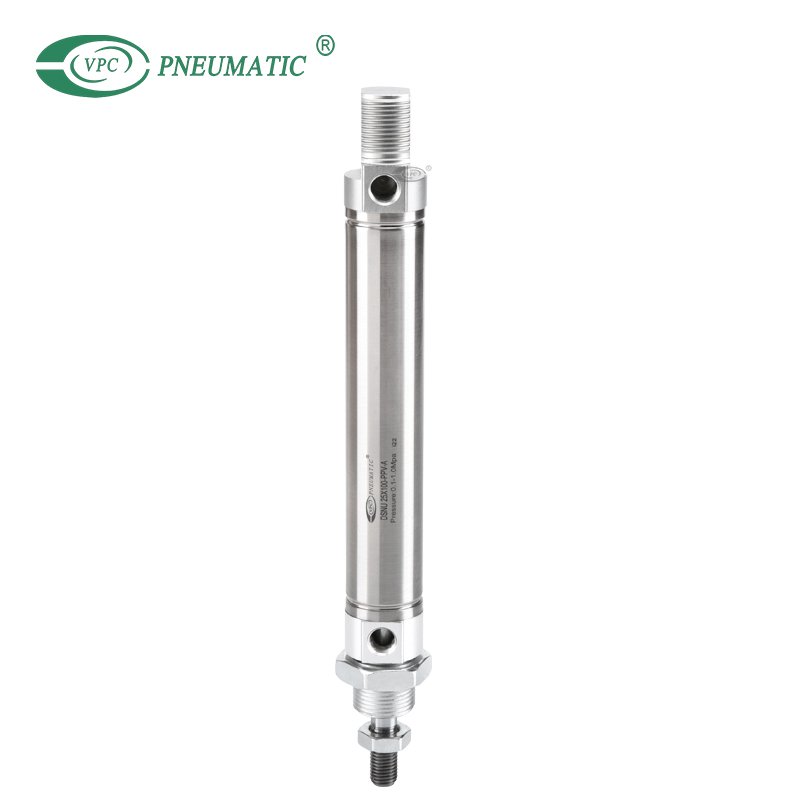

Edelstahl-Minizylinder der DSNU-Serie, doppeltwirkend

1. DSNU is a round mini cylinder in accordance with ISO6432 standard.
2. Pneumatic cylinder barrel is made of stainless steel, bore 8~63mm, stroke 1~500mm, and the cylinder bore, and piston rod can be customized according to the application scenario.
3. 6 types of installation to meet the use of various scenarios.

4. Piston rod with internal or external thread.

5. Auto switches are available in band and rail mounting types.

Modell:
DSNU25X100-PPV-A
Produktmarke:
VPC Pneumatic
Produktcode:
8412310090

Bohrungsbereiche:	8 bis 63 mm
Schlaganfall:	1 bis 500 mm
Einstellhub:	1 bis 500 mm
Verfügbarkeitsstatus:



erkundigen In den Einkaufswagen

Product Description

■ Product Feature

1. The excellent running performance and long service life.

2. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes.

3. Piston rod with internal or external thread.

4. Magnetic piston for position sensing.

5. A wide range of variants for customized applications, for example, smooth running, corrosion, or chemical resistance are required.

■ Symbol

festo pneumatic cylinder

* Bore diameters from 8 to 25 mm are in conformance with ISO 6432.

Product Specifications

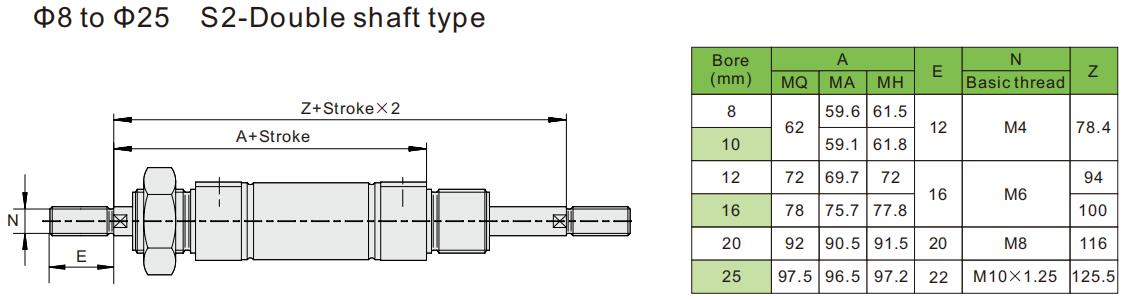

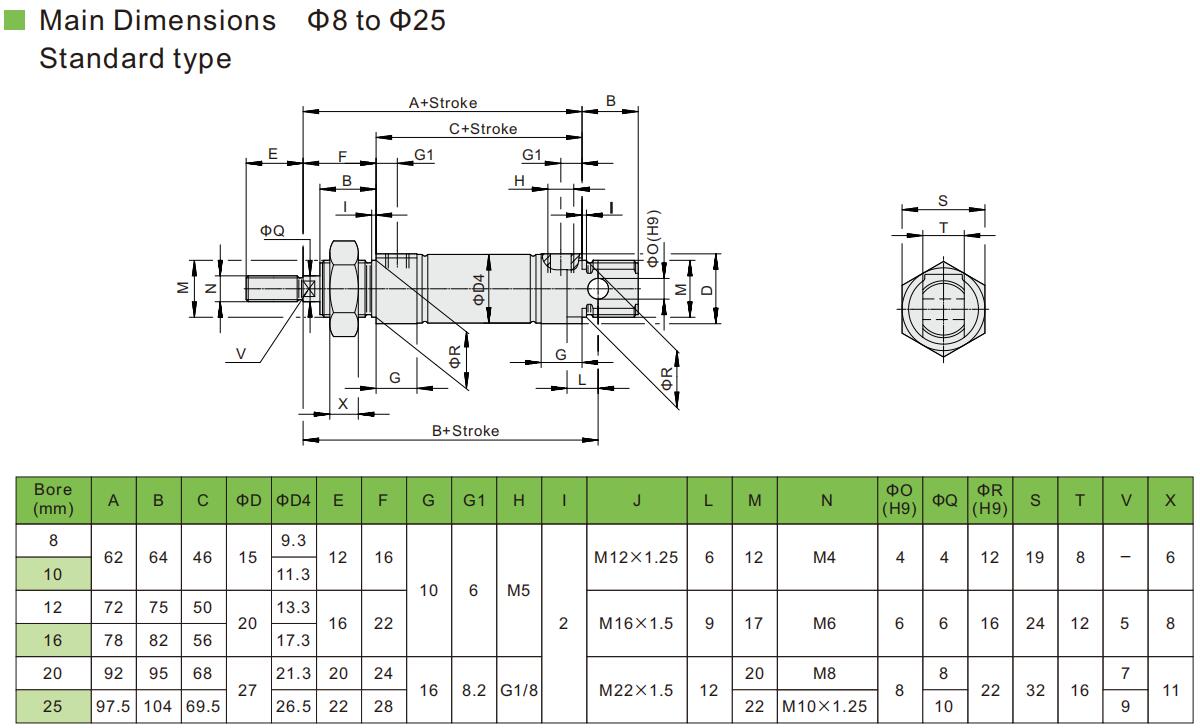

Bore(mm)		8	10	12	16	20
Acting type		Double acting, Single acting
Working medium		Clean air(40um Filteration)
Working pressure		0.15 to 1.0Mpa			0.1-1.0Mpa
Working temperature		-20 to 80℃
Lubrication		No required
Speed range		-			10 to 100mm/s

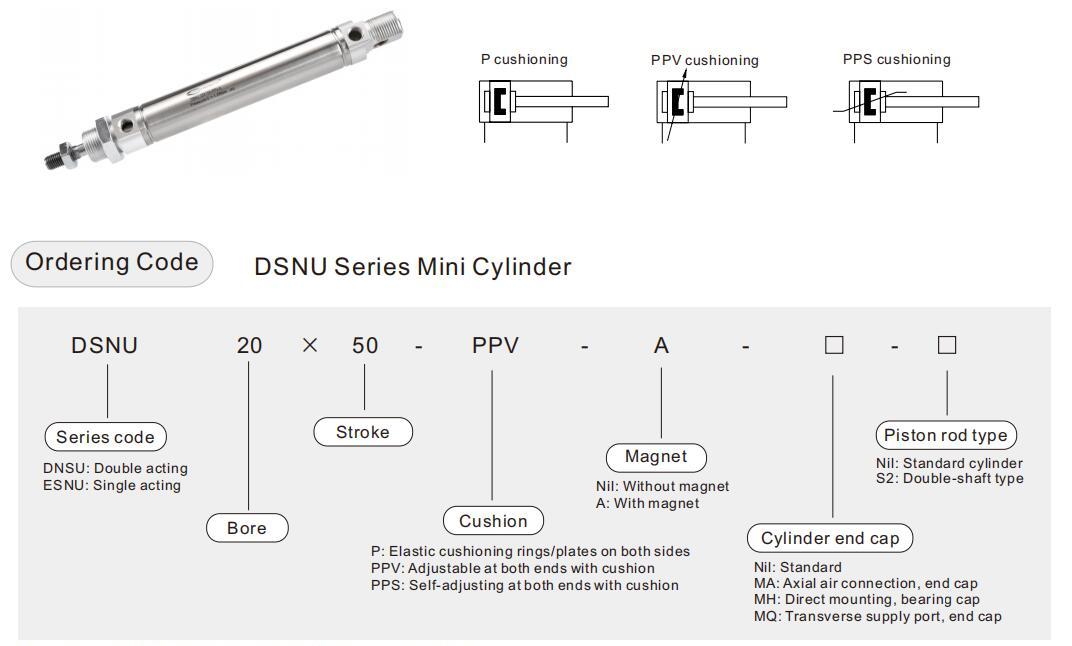

Cushion type	DSNU-□-P	Elastic cushion rings
	DSNU-□-PPV	-		Adjustable cushion
	DSNU-□-PPS	－			Self-adjustable cushion
Cushion stroke	DSNU-□-PPV	－		9mm	12mm	15mm
	DSNU-□-PPS	-			12mm	15mm
Port size		M5	M5	M5	M5	G1/8
Piston rod thread		M4	M4	M6	M6	M8

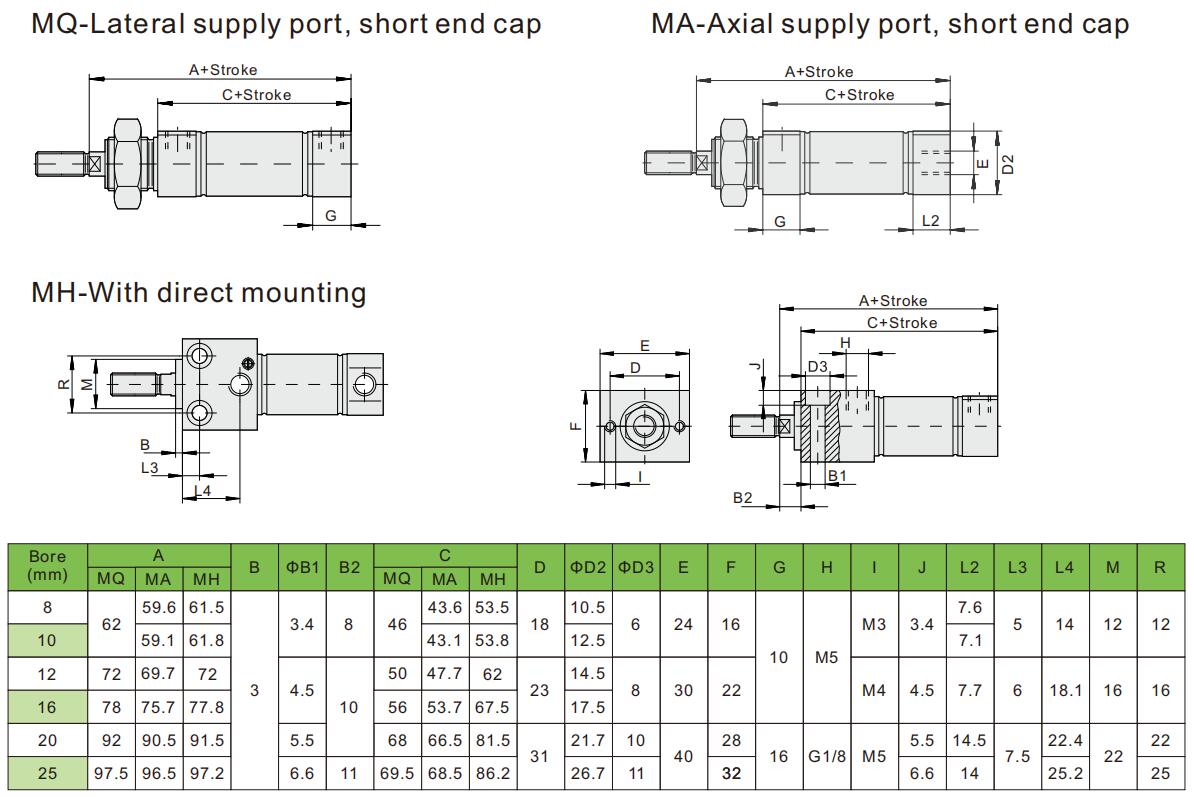

Mounting type		Direct mounting (variant MH only)
		With accessories

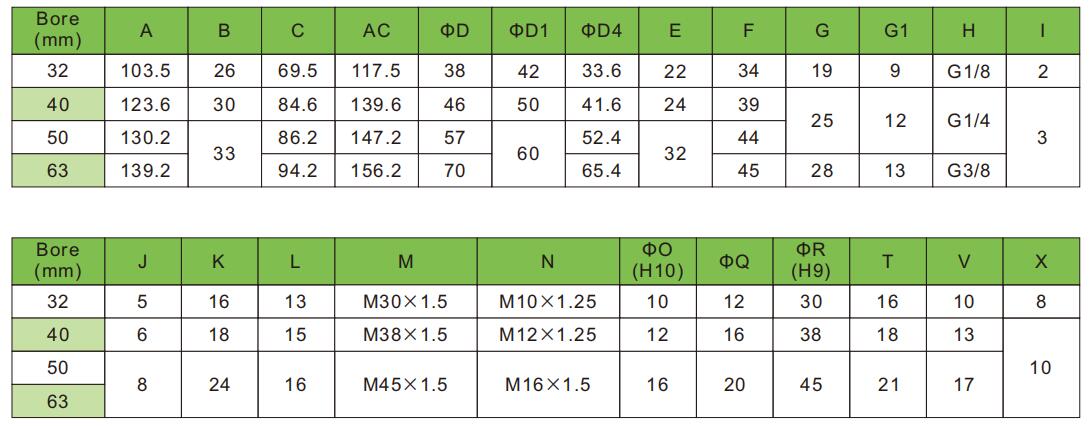

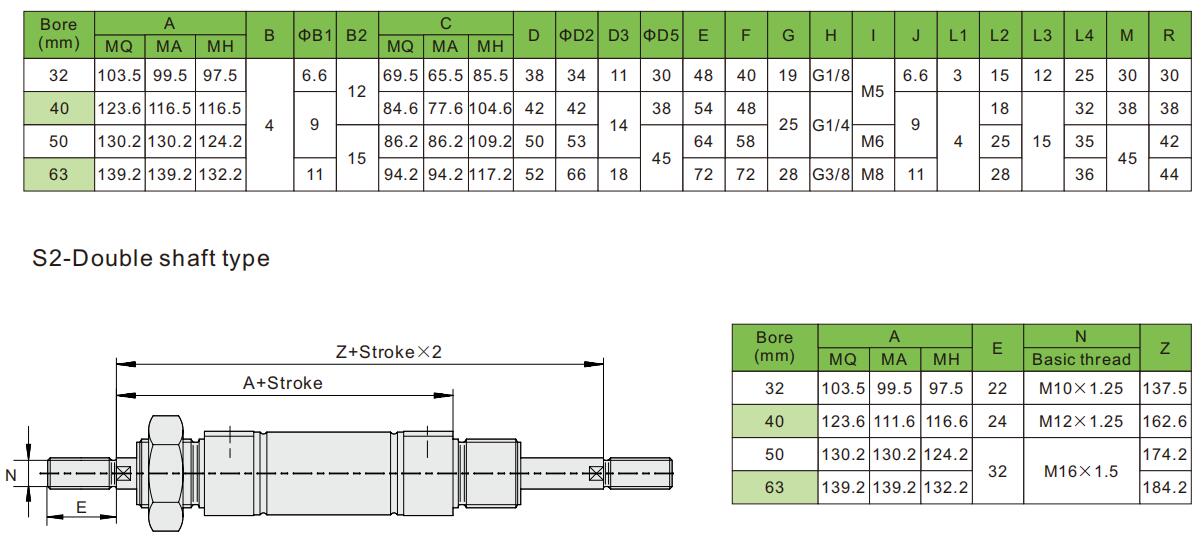

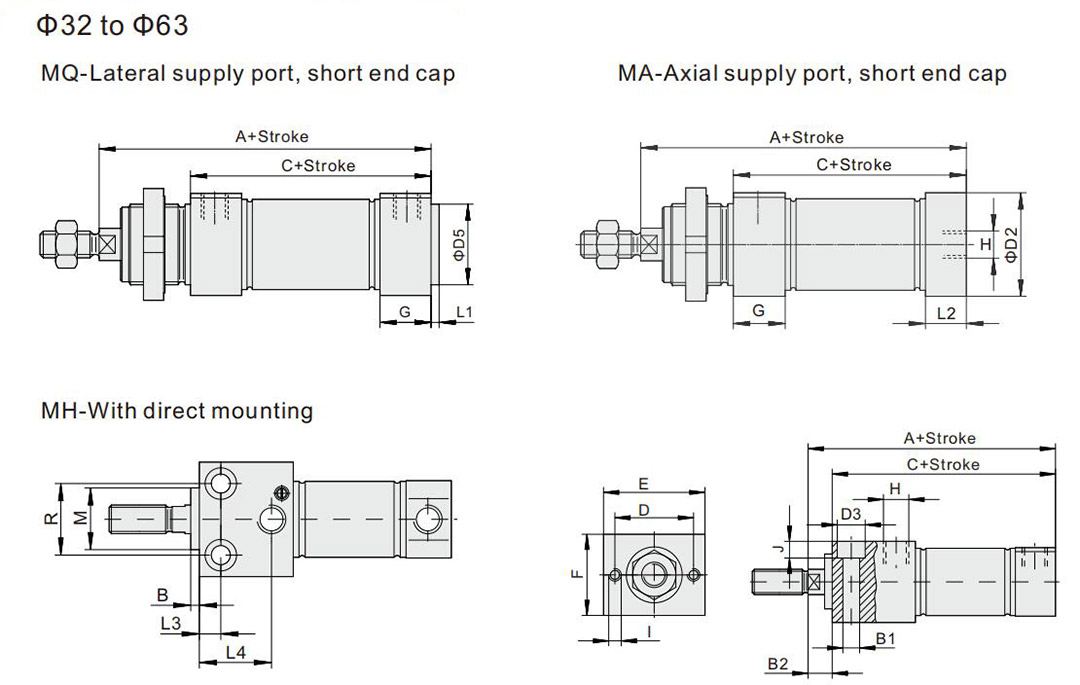

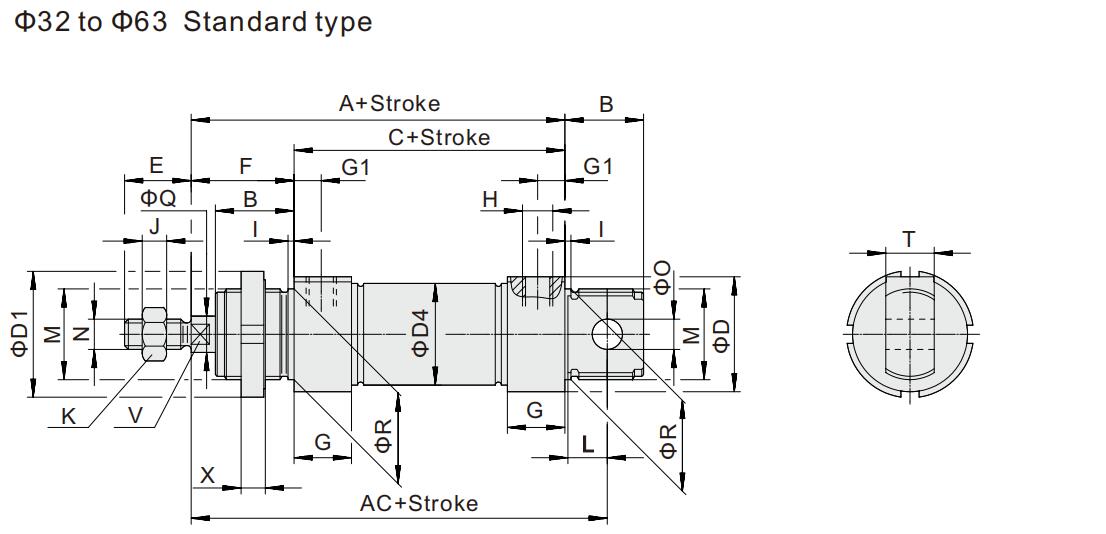

Bore(mm)		25	32	40	50	63
Acting type		Double acting, Single acting
Working medium		Clean air(40um Filteration)
Working pressure		0.1-1.0Mpa
Working temperature		-20 to 80℃
Lubrication		No required
Speed range		10 to 100mm/s	8 to 100mm/s			5 to 100mm/s
Cushion type	DSNU-□-P	Elastic cushion rings
	DSNU-□-PPV	Adjustable cushion
	DSNU-□-PPS	Self-adjustable cushion
Cushion stroke	DSNU-□-PPV	17mm	14mm	18mm	20mm	21mm
	DSNU-□-PPS	17mm	14mm	18mm	20mm	21mm
Port size		G1/8	G1/8	G1/4	G1/4	G3/8
Piston rod thread		M10×1.25	M10×1.25	M12×1.25	M16×1.5	M16×1.5
Mounting type		Direct mounting (variant MH only)
		With accessories
