Heim / Produkte / Richtungsventil / Mechanische und manuelle Steuerventile / 3H210-06 3-Wege-Handhebelventil mit 2 Positionen, 1/8 Zoll BSPT, betätigte pneumatische Ventile

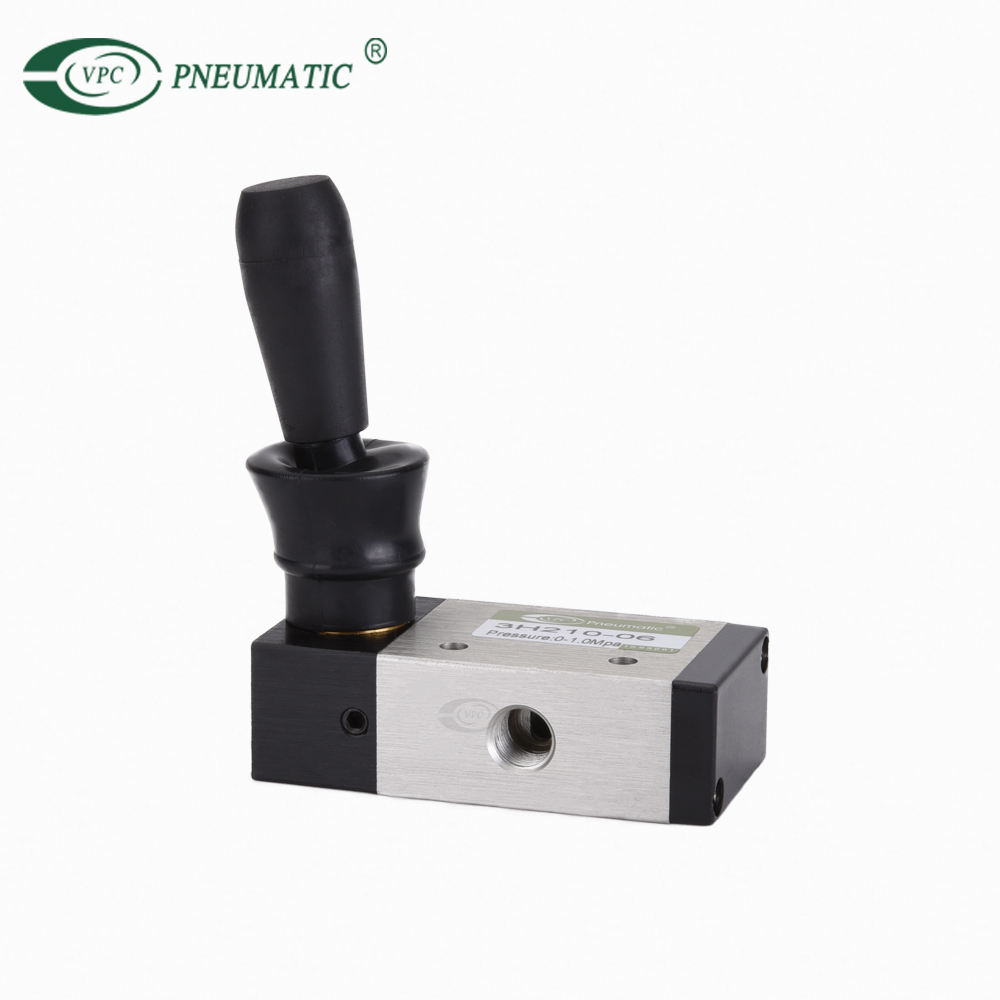

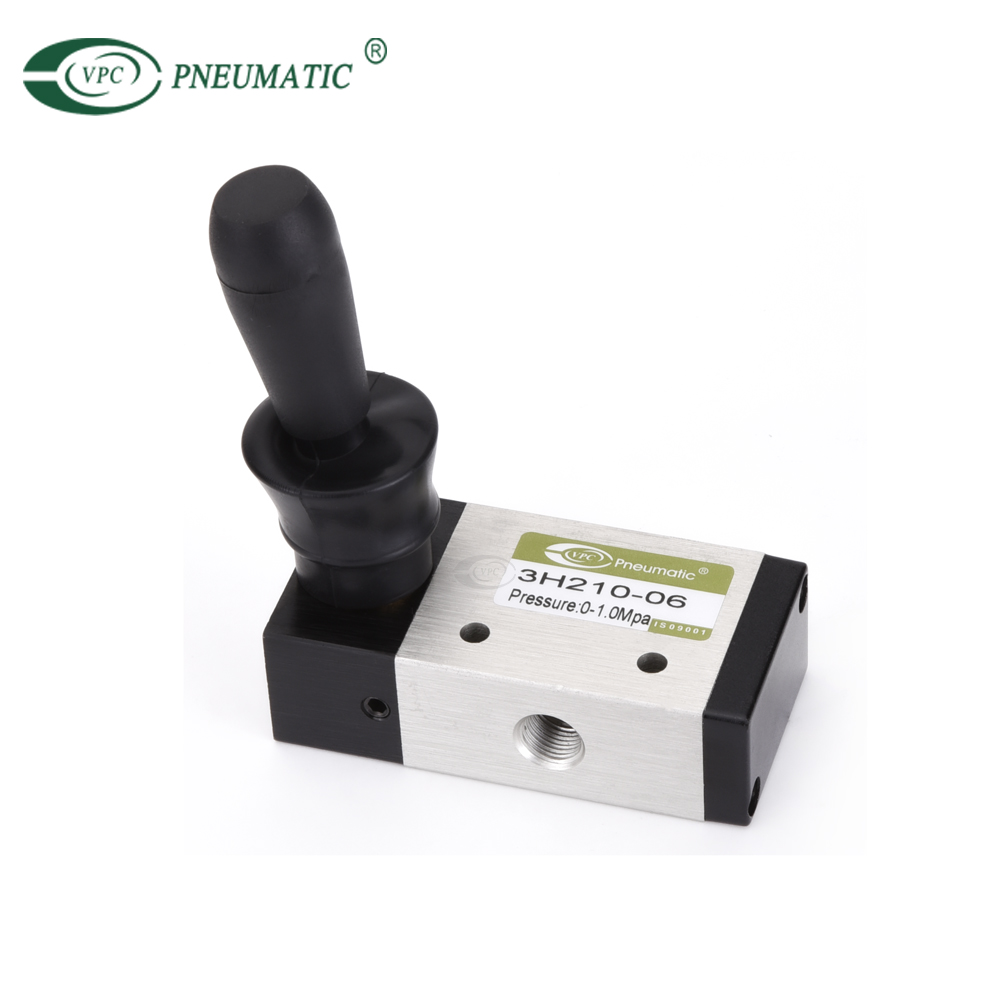

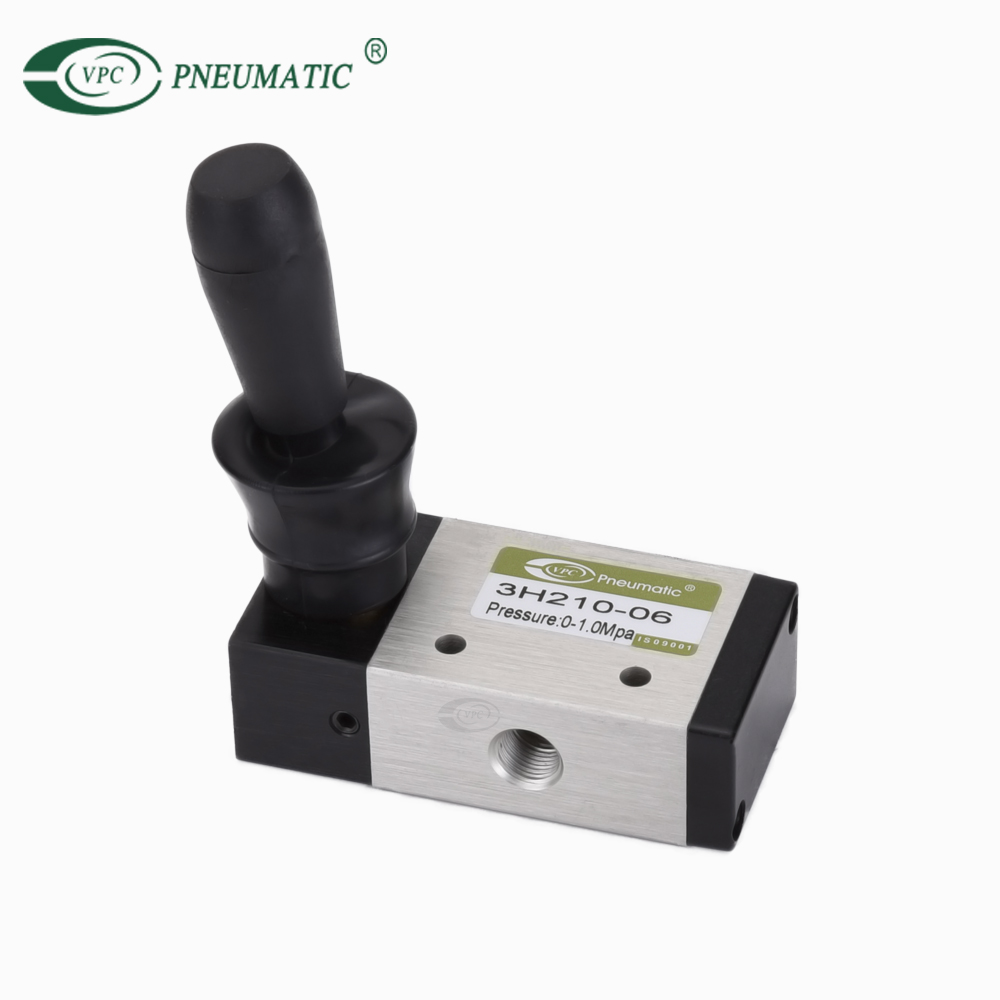

3H210-06 3-Wege-Handhebelventil mit 2 Positionen, 1/8 Zoll BSPT, betätigte pneumatische Ventile
3H210-06 3-Wege-Handhebelventil mit 2 Positionen, 1/8 Zoll BSPT, betätigte pneumatische Ventile 3H210-06 3-Wege-Handhebelventil mit 2 Positionen, 1/8 Zoll BSPT, betätigte pneumatische Ventile
3H210-06 3-Wege-Handhebelventil mit 2 Positionen, 1/8 Zoll BSPT, betätigte pneumatische Ventile 3H210-06 3-Wege-Handhebelventil mit 2 Positionen, 1/8 Zoll BSPT, betätigte pneumatische Ventile
3H210-06 3-Wege-Handhebelventil mit 2 Positionen, 1/8 Zoll BSPT, betätigte pneumatische Ventile 3H210-06 3-Wege-Handhebelventil mit 2 Positionen, 1/8 Zoll BSPT, betätigte pneumatische Ventile

loading

3H210-06 3-Wege-Handhebelventil mit 2 Positionen, 1/8 Zoll BSPT, betätigte pneumatische Ventile

Anteil an:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
1. Manual betrieben 2. Varianische Arbeitsstile sind verfügbar 3. Einfach zu bedienen und mit Betriebskraft, gutem Aussehen, kompakt usw.
  • 3H210-06

  • VPC

  • 8481802190

Verfügbarkeitsstatus:

Produktbeschreibung

ArbeitsmediumSaubere Luft
Arbeitsdruck0-1.0mpa
maximaler Druck1,5 MPA
Arbeitstemperatur-10-60 ℃
KörpermaterialAluminium
SchmierungNein


ModleGelenkgrößeQuerschnittsfläche
3H110-06G1/8 "12 mm² (CV = 0,67)
3H210-06G1/8 "14mm² (CV = 0,78)
3H210-08G1/4 "16 mm² (CV = 0,89)
3H310-08G1/4 "25mm² (CV = 1,39)
3H310-10G3/8 "30 mm² (CV = 1,67)
3H410-10G3/8 "40 mm² (CV = 2,23)
3H410-15G1/2 "50 mm² (CV = 2,79)
4H110-06G1/8 "12 mm² (CV = 0,67)
4H110-08G1/8 "14mm² (CV = 0,78)
4H210-06G1/4 "16 mm² (CV = 0,89)
4H210-08G1/4 "25mm² (CV = 1,39)
4H310-08G3/8 "30 mm² (CV = 1,67)
4H310-10G3/8 "40 mm² (CV = 2,23)
4H410-15G1/2 "50 mm² (CV = 2,79)
4H130C-06G1/8 "9mm² (CV = 0,50)
4H230C-08G1/4 "12 mm² (CV = 0,67)
4H330C-10G3/8 "18 mm² (CV = 1,00)
4H430C-15G1/2 "30 mm² (CV = 1,67)
